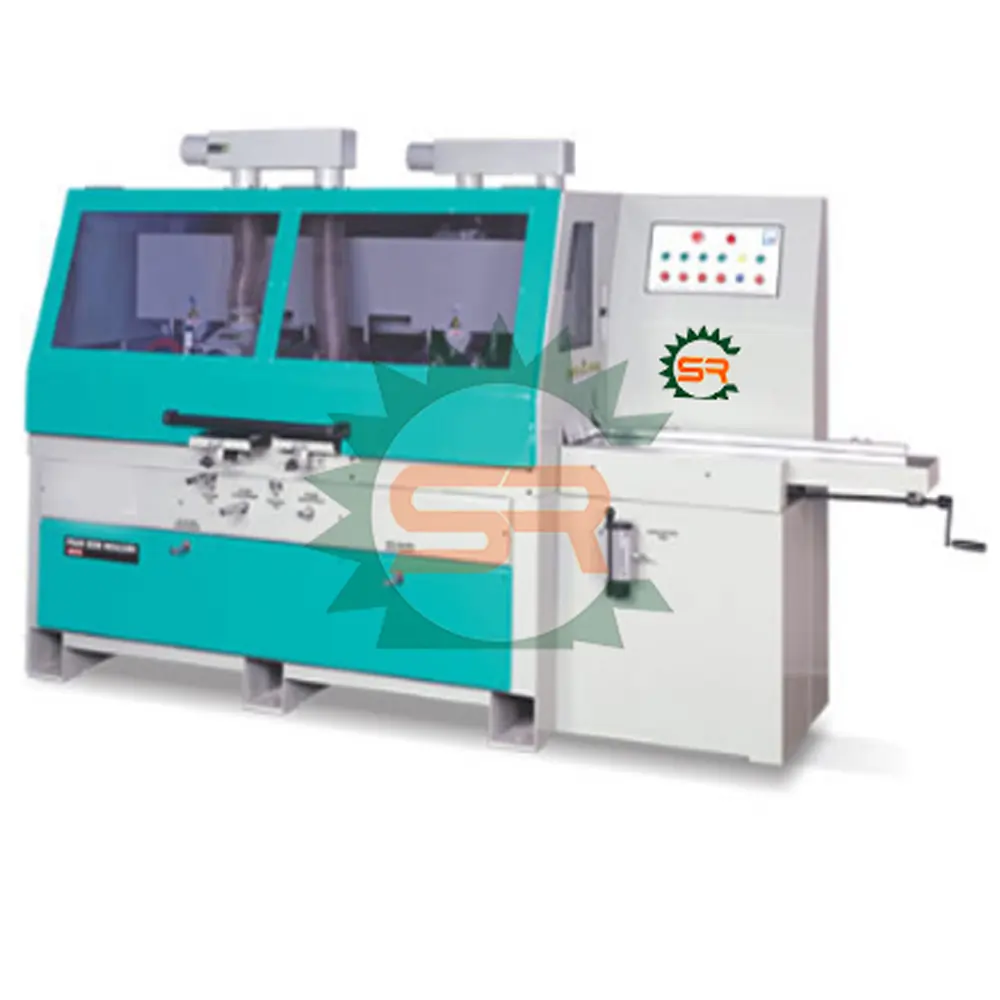

Four Side Moulder Machine
Four Side Moulder Machine
Moulding / Spiral Planing Cutter blocks available (optional)7.5 hp 3 PH capacity motor can be fitted (optional)
| SPECIFICATIONS | |
|---|---|
| Minimum Order Quantity | 1 Unit |
| Power | 21.5 |
| Model Name/Number | Four side moulder J-4230 |
| Working Width | 40 – 225 mm / 1 1/2 – 9 inch |
| Working Thickness | 6 – 150 mm / 1/4 x 6 inch |
| Min Length Of Work Piece | 455 mm / 18 inch |
| Infeed Table Length | 1600 mm / 63 inch |
| Infeed Table Adjustment | 6 mm / 1/4 inch |
| Feeding Speed | 12 (feet / min) |
| Top and Bottom Spindle Cutter Diameter | 125 mm / 5 inch |
| LH and RH Spindle Cutter Diameter Min Max | 100 – 200 mm / 4 – 8 inch |
| Top and Bottom Spindle Speed | 5000 rpm |
| LH and RH Spindle Speed | 6000 rpm |
| Top Spindle Up Down Movement | 150 mm / 6 inch |
| Bottom Spindle Up Down Movement | 40 mm / 1.575 inch |
| Size of Dust Collecting Port Diameter | 100 mm / 4 inch |
| Top and Bottom Spindle Electric Motor | 5 HP / 2800 rpm |
| Electric Motor For Feeding | 3 x 0.5 / 1440 no x HP/RPM |
| Total Power Required | 21.5 HP |
| Weight of Machine | 2100 Kg |
| Model No | J-4230s |
