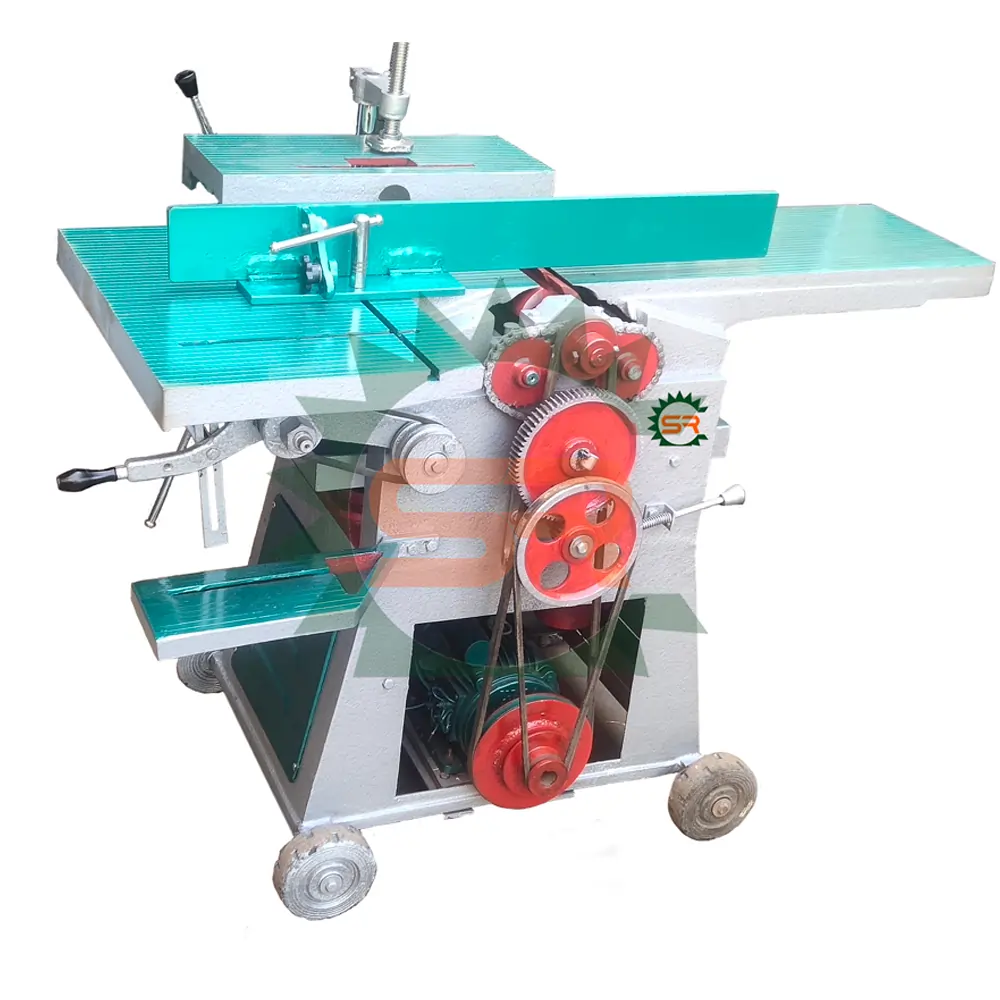

10 inch Wood Planner Machine
10 inch Wood Planner Machine
We offer a wide range of 10” multipurpose thickess planner Machine. These machines are in high demand, both in the domestic as well the international markets for cutting of wooden logs and all type of wood pieces. Manufactured using quality raw material and precisely balanced wheels keep it steady and silent while cutting, our products are appreciated for their zero maintenance, sturdy construction and durability.
| SPECIFICATIONS | |
|---|---|
| Feeding Speed | 24 (feet per minute) |
| Surfacing Capacity | 267 mm / 10 1/2 inch |
| Max Planning Width | 255 mm / 10 inchs |
| Thickness Capacity | 204 mm / 8 inch |
| Length of Planning Table | 1370 mm / 54 inch |
| Rebating Capacity | 13 mm / 1/2 inch |
| Length of Thickness Table | 760 mm / 30 inch |
| Cutter Block Speed | 3500 rpm |
| Circular Saw Table Size | 406 x 355 mm / 16 x 13 inch |
| Up Down Movement of Circular Saw Table | 75 mm / 3 inch |
| Max Circular Saw Diameter | 300 mm / 12 inch |
| Power Required | 3 HP / 1440 rpm |
